Water Extraction
48 L/H
Air Circulation
~23,000 M³/H
Patent Protected

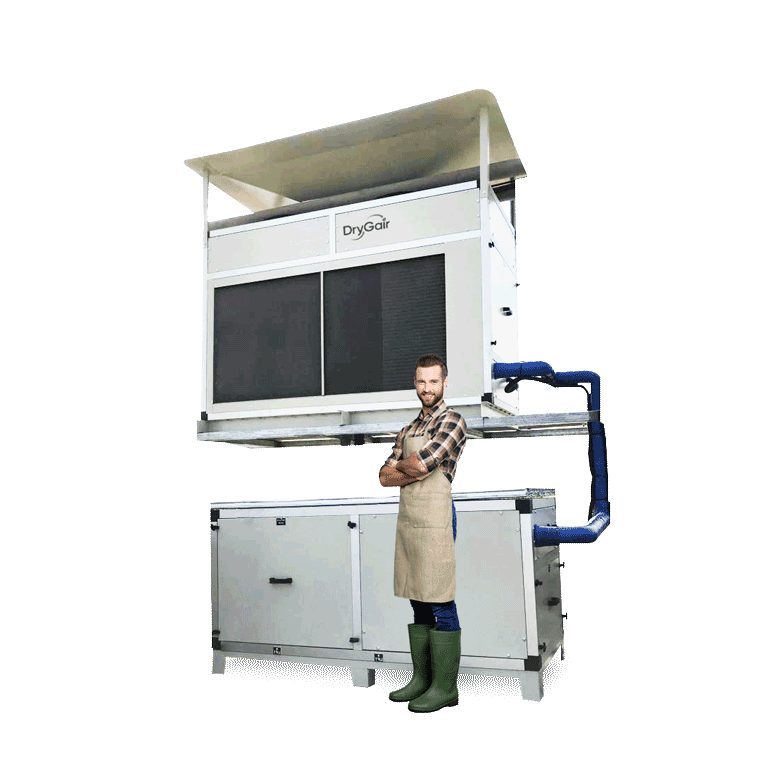

Space in any growing facility is precious, and growers should be able to maximize their use of it. Every meter counts. Our split unit can be positioned according to the greenhouse’s specific limitations. The separate parts can be placed one above the other, or side by side, at a maximum distance of 4 meters.
DryGair dehumidifiers are designed by a team of agronomists and climate engineers to address humidity, specifically in cultivation settings. Our team also assists every single grower in choosing the best solution for their unique facility and environment. DryGair is manufactured to uphold the highest standard, and comply with GMP regulations. DG-12 comes in 2 variations (50 Hz and 60 Hz), in order to accommodate growers worldwide.
The DG-12 50Hz series includes: DG-12 50Hz Standard, DG-12 50Hz Split, DG-12 50Hz Heating & Cooling, DG-12 50Hz Heating & Cooling Split
DG-12 Series Features
Designed for optimal cultivation conditions.
Measured in liters of water extracted per kW.
Integrates with existing/additional climate control systems.
360° air dispersal for climate uniformity.
DG-12 Series Photos
Technical Details
| Depth Upper Part | 933 mm |
| Width Upper Part | 2,570 mm |
| Height Upper Part |
1,600 mm, 2,100 mm with air distribution module (exact height can be adjusted) |
| Weight Upper Part | ~595 kg |
| Depth Lower Part | 933 mm |
| Width Lower Part | 2,000 mm |
| Height Lower Part |
940 mm (exact height can be adjusted) |
| Weight Lower Part | ~395 kg |
| Max. Distance Between Parts | 4 m |
| Operating Temperature | 10°C – 40°C |
| Water Condensation | 48 L/h @18°C ,80% RH |
| Air Flow | ~23,000 m³/h |
| Electricity Consumption | 12 kW |
| Electricity Requirements | 3 phase, 400V, 50Hz I(Oper. max) = 44 Amp |
| Type of Refrigerant | R513A or R134A |
Technical Sketches
Technical Videos
How to install 3 phase DryGair units
How to reset your DryGair unit
Available Add-Ons
Defrost Coil
The electric defrosting system, designed for the DG-12 and DG-3, tackles this problem head-on by preventing ice formation, ensuring dependable dehumidification even at temperatures as low as 6°C (43 °F). This innovation allows for precise humidity control across a broader temperature range, no matter the conditions. The result? Healthier plants and better yields all year long.
Please note: the defrost coil is available only by pre-order and increases the unit height by approximately 5–10 cm. (2–4 in.).
Castors (Wheels)
Add castors to DryGair units for easy transport in the growing facility. The wheels add ~9 cm (~3.5″) to the unit’s height.
Heating & Cooling Kit
Heating and cooling kits can be added to DG-12 and DG-6 (Standard or Split models), to provide additional heating and cooling functions. The heating and cooling system requires an external hot or cold water source. Specifications are calculated by the DryGair team on a case-by-case basis.
Protective Wire Net
This robust metal cover protects the outer coils on both sides of the machine from physical damage. The cover is screwed around the coils on both sides of the unit.
Resistance To Chemicals And Sulphur
This coating treatment will protect the coils, inner copper components and welded parts from corrosion and will provide resistance to various harmful agents and particles. Contact us for the full list of chemicals.
Side Canopy
Unidirectional hoods For units positioned on the side of growing facilities. This side canopy will direct the unit’s airflow in one or two directions depending on the needs of the facility. Sizes: Height 850 mm (33.5″), Depth 910 mm (36″), Width 910 mm (36″)
Status Signal Light
External light to signal unit activity, stand-by mode, and errors.
Water Meter
DryGair Smart DG units can be installed with a high-end water meter to enable measurement of the amount of water extracted by the unit. It is attached to the drainage pipe at the bottom part of the unit and measures the amount of water by pulses of 100 ml. (3.4 oz.) The meter is directly connected to the main controller and has a battery that will last for 10 years. By Arad group.
